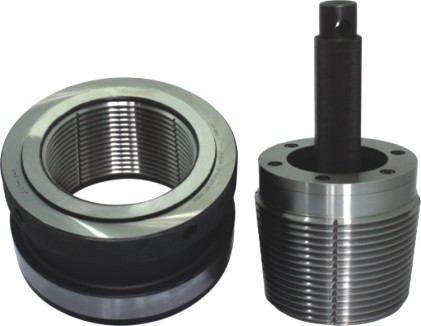

API Thread Ring Gauge Thread Plug Gauge
We can make all kinds of types Go & No go Gauge according to customers demand.
Our gage engineering team is ready to design and work with you on all your thread gaging needs;
We provide a complete line of API (American Petroleum Institute) plug and ring gages for(both working & masters):
|
BCSG
|
CSG
|
NC
|
IF
|
TBG(NU)
|
UP TBG
|
REG
|
FH
|
|
4 1/2 BCSG
|
4 1/2 CSG
|
NC23
|
2 3/8 IF
|
2 3/8 TBG (NU)
|
2 3/8 UP TBG(EUE)
|
2 3/8 REG
|
2 7/8 FH
|
|
5 BCSG
|
5 CSG
|
NC26
|
2 3/7 IF
|
2 7/8 TBG (NU)
|
2 7/8 UP TBG(EUE)
|
2 7/8 REG
|
3 1/2 FH
|
|
5 1/2 BCSG
|
5 1/2 CSG
|
NC31
|
3 1/2 IF
|
3 1/2 TBG (NU)
|
3 1/2 UP TBG(EUE)
|
3 1/2 REG
|
4"FH
|
|
6 5/8 BCSG
|
6 5/8 CSG
|
NC35
|
4 "IF
|
4 TBG (NU)
|
4 UP TBG(EUE)
|
4 1/2 REG
|
4 1/2 FH
|
|
7 BCSG
|
7 CSG
|
NC38
|
4 1/2 IF
|
4 1/2 TBG (NU)
|
4 1/2 UP TBG(EUE)
|
5 1/2 REG
|
5 1/2 FH
|
|
7 5/8 BCSG
|
7 5/8 CSG
|
NC40
|
5 1/2 IF
|
|
|
6 5/8 REG
|
6 5/8 FH
|
|
8 5/8 BCSG
|
8 5/8 CSG
|
NC44
|
|
|
|
7 5/8 REG
|
|
|
9 5/8 BCSG
|
9 5/8 CSG
|
NC46
|
|
|
|
8 5/8 REG
|
|
|
10 3/4 BCSG
|
10 3/4 CSG
|
NC50
|
|
|
|
|
|
|
11 3/4 BCSG
|
11 3/4 CSG
|
NC56
|
|
|
|
|
|
|
13 3/8 BCSG
|
13 3/8 CSG
|
NC61
|
|
|
|
|
|
|
16 BCSG
|
16 CSG
|
NC70
|
|
|
|
|
|
|
18 5/8 BCSG
|
18 5/8 CSG
|
NC77
|
|
|
|
|
|
|
20 BCSG
|
20 CSG
|
|
|
|
|
UP TBG, EU LINE PIPE or LP ; DP UP DP Gauge
API gauge (Casing Round Thread)
|
Gauge Code
|
Outer dia. Ø
|
Taper
|
Gauge Code
|
Outer dia. Ø
|
Taper
|
|
4 1/2 (CSG,LCSG)
|
114.30
|
1:16
|
8 5/8 (CSG,LCSG)
|
219.08
|
1:16
|
|
5 (CSG,LCSG)
|
127.00
|
9 5/8 (CSG,LCSG)
|
244.48
|
|
5 1/2 (CSG,LCSG)
|
139.70
|
10 3/4 (CSG,LCSG)
|
273.05
|
|
6 5/8 (CSG,LCSG)
|
168.28
|
11 3/4 (CSG,LCSG)
|
298.45
|
|
7 (CSG,LCSG)
|
177.80
|
13 3/8 (CSG,LCSG)
|
339.73
|
|
7 5/8 (CSG,LCSG)
|
193.68
|
16 (CSG,LCSG)
|
406.40
|
|
The pitch of API gauges:3.175(8); The form angle of API thread gauge:60°
|
API gauge (Buttress Casing Thread)
|
Gauge Code
|
Outer dia. Ø
|
Taper
|
Gauge Code
|
Outer dia. Ø
|
Taper
|
|
4 1/2 BCSG
|
114.30
|
1:16
|
8 5/8 BCSG
|
219.08
|
1:16
|
|
5 BCSG
|
127.00
|
9 5/8 BCSG
|
244.48
|
|
5 1/2 BCSG
|
139.70
|
10 3/4 BCSG
|
273.05
|
|
6 5/8 BCSG
|
168.28
|
11 3/4 BCSG
|
298.45
|
|
7 BCSG
|
177.80
|
13 3/8 BCSG
|
339.73
|
|
7 5/8 BCSG
|
193.68
|
16 BCSG
|
406.40
|
1:12
|
|
The pitch of API gauges:5.08(5); The form angle of API thread gauge:3°, 10°.
|
API gauge (Non-upset Tubing Thread)
|
Gauge Code
|
Outer dia. Ø
|
Pitch
|
Taper
|
Gauge Code
|
Outer dia. Ø
|
Pitch
|
Taper
|
|
1.050 TBG
|
26.67
|
2.54(10)
|
1:16
|
2 7/8 TBG
|
73.03
|
2.54(10)
|
1:16
|
|
1.315 TBG
|
33.40
|
2.54(10)
|
3 1/2 TBG
|
88.90
|
2.54(10)
|
|
1.660 TBG
|
42.16
|
2.54(10)
|
4 TBG
|
101.60
|
3.175(8)
|
|
1.900 TBG
|
48.26
|
2.54(10)
|
4 1/2 TBG
|
114.30
|
3.175(8)
|
|
2 3/8 TBG
|
60.33
|
2.54(10)
|
|
|
|
|
The form angle of API gauges:60°
|
API gauge (External-upset Tubing Thread)
|
Gauge Code
|
Outer dia. Ø
|
Pitch
|
Taper
|
Gauge Code
|
Outer dia. Ø
|
Pitch
|
Taper
|
|
1.050 UPTBG
|
26.67
|
2.54(10)
|
1:16
|
2 7/8 UPTBG
|
73.03
|
3.175(8)
|
1:16
|
|
1.315 UPTBG
|
33.40
|
2.54(10)
|
3 1/2 UPTBG
|
88.90
|
3.175(8)
|
|
1.660 UPTBG
|
42.16
|
2.54(10)
|
4 UPTBG
|
101.60
|
3.175(8)
|
|
1.900 UPTBG
|
48.26
|
2.54(10)
|
4 1/2 UPTBG
|
114.30
|
3.175(8)
|
|
2 3/8 UPTBG
|
60.33
|
3.175(8)
|
|
|
|
|
The form angle of API gauges:60°
|
API gauge (Line Pipe Thread)
|
Gauge Code
|
Outer dia. Ø
|
Pitch
|
Taper
|
Gauge Code
|
Outer dia. Ø
|
Pitch
|
Taper
|
|
1/8 LP
|
3.18
|
0.941(27)
|
1:16
|
2 1/2 LP
|
63.50
|
3.175(8)
|
1:16
|
|
1/4 LP
|
6.35
|
1.411(18)
|
3 LP
|
76.20
|
3.175(8)
|
|
3/8 LP
|
9.53
|
1.411(18)
|
3 1/2 LP
|
88.90
|
3.175(8)
|
|
1/2 LP
|
12.70
|
1.814(14)
|
4 LP
|
101.60
|
3.175(8)
|
|
3/4 LP
|
19.05
|
1.814(14)
|
5 LP
|
127.00
|
3.175(8)
|
|
1 LP
|
25.40
|
2.209(11 1/2)
|
6 LP
|
152.40
|
3.175(8)
|
|
1 1/4 LP
|
31.75
|
2.209(11 1/2)
|
8 LP
|
203.20
|
3.175(8)
|
|
1 1/2 LP
|
38.10
|
2.209(11 1/2)
|
10 LP
|
254.00
|
3.175(8)
|
|
2
|
50.80
|
2.209(11 1/2)
|
|
|
|
|
The form angle of API gauges:60°
|
